IntelliTeam® DEM Distributed Energy Management System
For monitoring and controlling the S&C PureWave® Community Energy Storage Units on your distribution system
Continuously communicates with, and provides real-time monitoring and control of, all PureWave Community Energy Storage Units on a distribution feeder

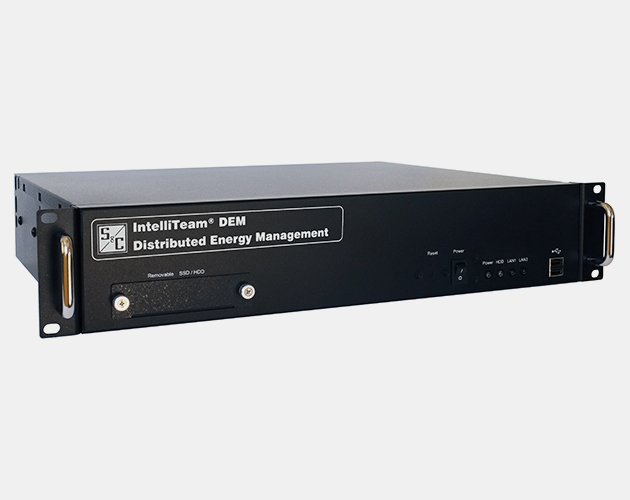

The IntelliTeam DEM Controller continuously communicates with, and provides real-time monitoring and control of, all PureWave Community Energy Storage Units on a distribution feeder. It directly interfaces with your SCADA system and Distribution Management System too. It provides fully-automated charging and discharging of each energy storage unit, either at scheduled times each day of the week, as needed to maintain target demand at the feeder or substation transformer level, or at a specific rate.
The controller reduces – or eliminates – the need for field trips to each energy storage unit to download data or change local set points. It automatically collects and consolidates performance data from the energy storage units, providing the efficient record-keeping needed for your carbon reduction efforts.
As more and more energy storage units are added to your system, the IntelliTeam DEM Controller becomes an invaluable tool for helping your stored energy resources attain their full potential. The controller gives your Distribution Management System operations staff full insight into the condition of the energy storage units and their capabilities. The easy-to-use “dashboard view” interface offers your operations staff a concise way to monitor, dispatch, and manage the stored energy fleet.
Multiple Applications, Multiple Benefits
After control of the energy storage assets has been consolidated at the feeder level, the IntelliTeam DEM Controller can facilitate a variety of higher-level applications, including:
- Peak Shaving/T&D Asset Deferral
- Load Leveling/Generation Asset Deferral
- Feeder Power Factor Regulation
- Improved Efficiency of Small-Scale Wind and Solar Generation
- Management of Commands from Different Levels.
High Reliability, Minimal Maintenance
The IntelliTeam DEM Controller is designed for utmost reliability. It features redundant processors and data storage, and nonvolatile random-access memory. Configuration settings and operational data can be replicated and saved, in near real time, to a database at a remote location, for use if recovery is ever necessary.
Communication and Control Options
The controller includes Ethernet and UART ports for hardwired connection to the communication network. Factory-installed radios can be optionally supplied for communication with the energy storage units. The controller is furnished with IntelliTeam DEM Distributed Energy Management Software, IntelliTeam® Designer Configuration and License Management Software, IntelliLink® Remote Setup Software, Oracle® Database Standard Edition One, McAfee® Application Control for Servers Software, and McAfee Antivirus Software.
IntelliTeam DEM Controller architecture is highly secure. User authentication, multiple user roles, and access levels are supported. Software upgrades can be performed locally, through USB, serial, or Ethernet connection, or remotely over any communication medium that supports DNP 3.0.
How It Works
IntelliTeam® DEM Distributed Energy Management System resides in the substation or control room, and acts as a “master controller” of CES units. It constantly checks the status of each CES unit and presents a summary view to the Distribution Control Room. IntelliTeam DEM can command groups or fleets of CES units, allowing their output to be coordinated to perform higher-level functions such as:
- Peak shaving/load leveling
- Fleet charge/discharge
- System-level real or reactive power request
- Renewable energy time shift
Boletín Descriptivo 1047-30S.pdf [Spanish, 694 KB, 4/7/2014]
IntelliTeam DEM Sistema de Administracion de Energia Distribuida para monitorear y controlar las Unidades Comunitarias de Almacenamiento de Energia PureWave en su sistema de distribucion
Descriptive Bulletin 1047-30.pdf [English, 1490 KB, 4/7/2014]
IntelliTeam DEM Distributed Energy Management Systemfor monitoring and controlling the S&C PureWave Community Energy Storage Units on your distribution system
Information Sheet 1047-451.pdf [English, 58 KB, 4/7/2014]
S&C IntelliTeam DEM Distributed Energy Management System: Detailed Functional Specification Guide
Information Sheet 1047-451.rtf [English, 895 KB, 4/7/2014]
S&C IntelliTeam DEM Distributed Energy Management System: Detailed Functional Specification Guide (Word Format)
Specification Bulletin 1047-31.pdf [English, 107 KB, 5/9/2016]
S&C IntelliTeam DEM Distributed Energy Management System
